Semi-Rigid Coaxial Cables

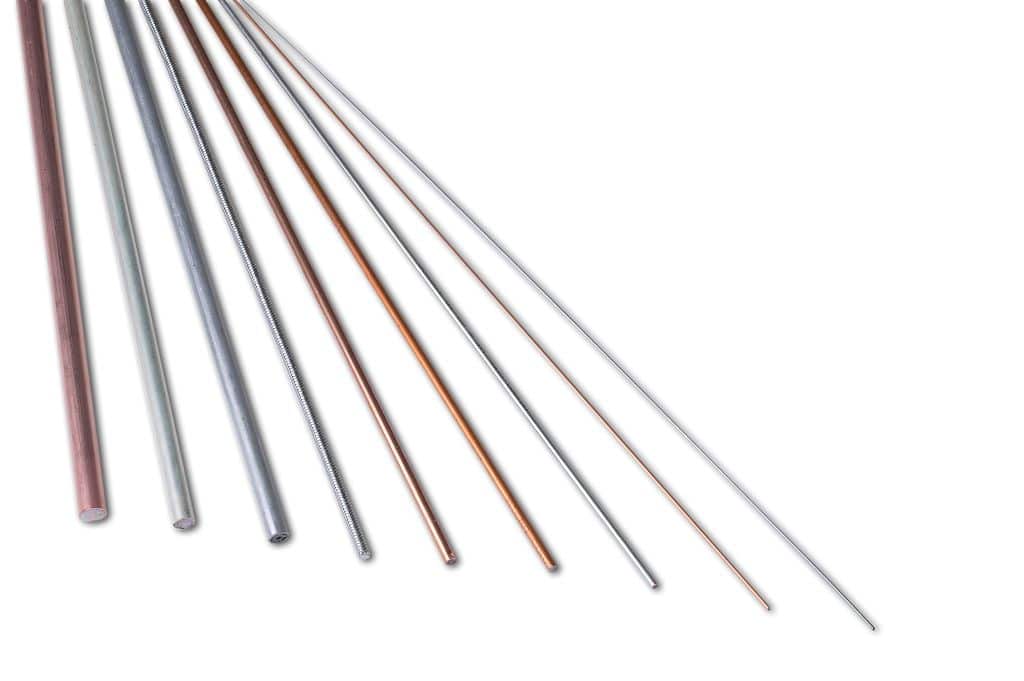

Semi-rigid cable comes as close as possible to the ideal coaxial cable due to its superior electrical performance, exceptional shielding effectiveness, and dimensional stability, making it the first choice of any RF/Microwave engineer. We offer semi-rigid coaxial cable options with a large range of impedances, diameters, materials, and finishes.

UT-034-M17 M17/154-00001 0.034" Semi-Rigid Cable – 50 Ω Copper - MIL-DTL-17 5
UT-034-TP-M17 M17/154-00002 0.034" Semi-Rigid Cable - 50 Ω Tin-Plated Copper - MIL-DTL-17 5
UT-047-TP-M17 M17/151-00002 0.047" Semi-Rigid Cable - 50 Ω Tin-Plated Copper - MIL-DTL-17 5
UT-085-M17 M17/133-00006 0.085" Semi-Rigid Cable - 50 Ω Copper - MIL-DTL-17 5
UT-085C-TP-M17 M17/133-00009 0.085" Semi-Rigid Cable - 50 Ω Tin-Plated Copper - MIL-DTL-17 5
UT-085-TP-M17 M17/133-00007 0.085" Semi-Rigid Cable - 50 Ω Tin-Plated Copper - MIL-DTL-17 5
UT-085-H-M17 M17/113-RG405 0.085" Semi-Rigid Cable - 50 Ω Copper - MIL-DTL-17 5
UT-141-SA-M17 M17/130-00004 0.141" Semi-Rigid Cable - 50 Ω Copper - MIL-DTL-17 5
T-141-SA-TP-M17 M17/130-00005 0.141" Semi-Rigid Cable - 50 Ω Tin-Plated Copper - MIL-DTL-17 5
UT-047C-LL N/A 0.047" Semi-Rigid Cable - 50 Ω Copper - Low-Loss 5
UT-085C-LL N/A 0.085" Semi-Rigid Cable - 50 Ω Copper - Low-Loss 5
IBS047-KMKM-4.0IN N/A API Test Values 10
IBS047-SMSM-12.0IN API Test Values 12.0
UFB205A-0-0720-300300 API Test
UFA210B-0-1800-300300 API Test
UFA210B-0-0150-300380 API Test
HFE100D API Test
M17/130-00005 API Test

Part Number Builder

The UT part number designation is easy to understand because it is simple and short, especially for standard cable. Materials for component parts are indicated under individual cable specifications.

UT
-
141
C
-
75
-
AL
-
TP
-
LL
Code Cable type
UT Semi-Rigid
Code Code Outer Diameter
Value Nominal Diameter in thousands of inches
Code Inner Conductor Material
No Entry or A Silver-Plated Copper Weld (SPCW)
AL Aluminum Alloy 1100
B Silver-Plated Beryllium Copper
C Silver-Plated Copper (SPC)
SS Stainless Steel Alloy 304
Code Character Impedance
No Entry 50 Ω
Value Nominal Impedance in Ω
Code Outer Conductor Material
No Entry Copper
AL Aluminum Alloy 1100
CuSS Copper/ Stainless Steel Composite
SS Stainless Steel Alloy 304
Code Outer Conductor Finish
No Entry No Plating
ED9010 Solder Plating (90% Tin/10% Lead)
SP Silver Plating
TP Tin Plating
Code Other Options
No Entry PTFE
ULL Ultra-low-density
DS Dimensionally Stable PTFE
F FEP Insulation Jacket
LL Low-density PTFE
M Low Dielectric Compression PTFE
M17 MIL-DTL-17 QPL Cable

Offerings

50 Ω Copper & 50 Ω Aluminum

Semi-Rigid cables stand out for their versatility and are engineered to provide high shielding effectiveness to reduce signal loss and interference, making them a top choice for today’s demanding applications.

  • Diameters from 0.013″ to 0.390″
  • Available with copper, aluminum, silver-plated and tin-plated outer conductors.

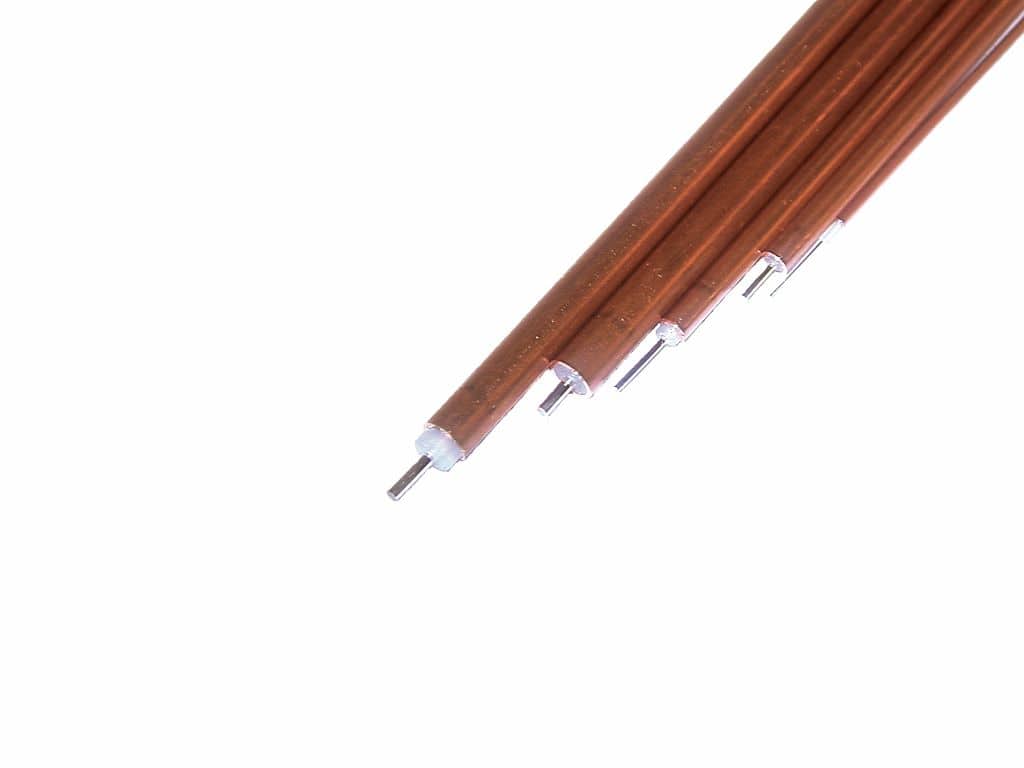

Standard Copper Outer Conductor
Silver-Plated Copper Outer Conductor
Tin-Plated Copper Outer Conductor

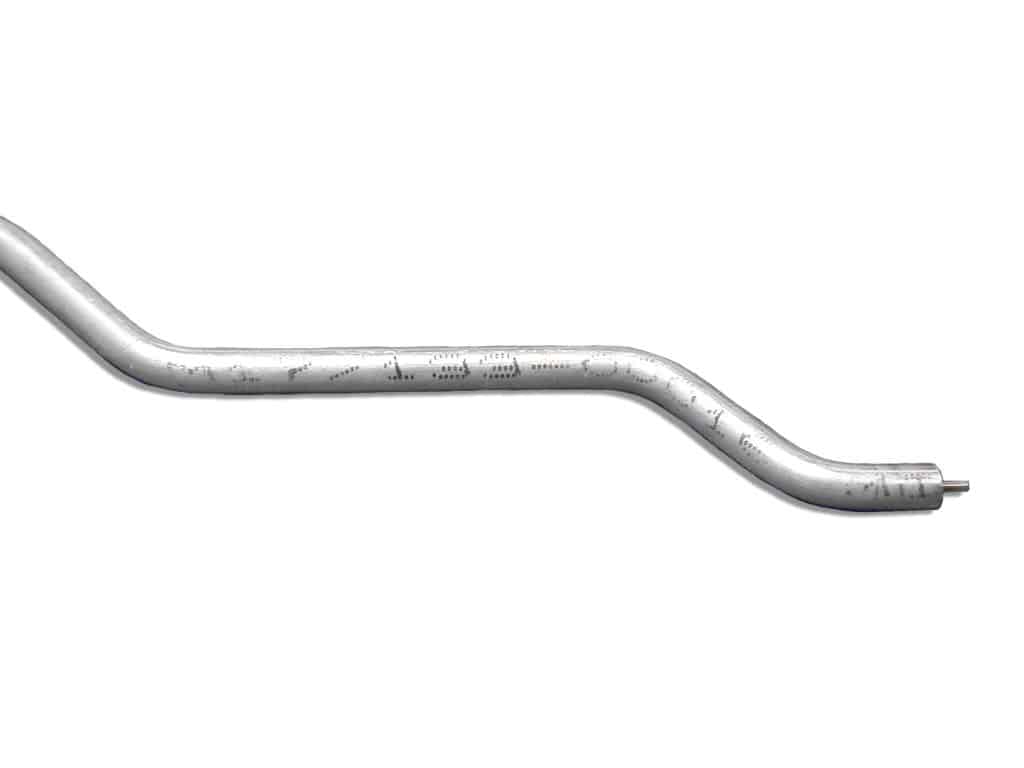

Standard Aluminum Outer Conductor
Tin-Plated Aluminum Outer Conductor
Part-Number M17 Description Download Datasheet
UT-013 0.013" Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-020 0.020" Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-034-M17 M17/154-00001 0.034" Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material.
UT-034C 0.034" Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-047-M17 M17/151-00001 0.047" Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material.
UT-047C 0.047" Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-056 0.056" Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-056-STR 0.056" Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-070C 0.070" Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-085-M17 M17/133-00006 0.085" Silver-plated Copper Weld (SPCW) inner conductor, PTFE dielectric. RoHS compliant
UT-085C-M17 M17/133-00008 0.085" Silver-plated Copper (SPC), PTFE dielectric. RoHS compliant
UT-085C-H 0.085" Silver-plated Copper (SPC), PTFE dielectric. RoHS compliant
UT-085-H-M17 M17/133-00002 0.085" Silver-plated Copper (SPC), PTFE dielectric. RoHS compliant
UT-141-SA-M17 M17/130-00004 0.141" Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS compliant.
UT-141C 0.141" Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-250A-M17 M17/129-RG401 0.250" Non-magnetic Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material.
UT-325C 0.325" Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-390C 0.390" Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
Part-Number M17 Description Download Datasheet
UT-034-SP 0.034" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric material. RoHS compliant.
UT-047-SP 0.047" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric material. RoHS compliant.
UT-085C-SP 0.085" Silver-plated Copper (SPC) inner conductor and PTFE dielectric material. RoHS compliant.
UT-085-SP-M17 0.085" Silver-plated Copper inner conductor and PTFE dielectric. RoHS compliant.
UT-141-SA-SP-M17 M17/130-00012 0.141" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric. RoHS compliant. material. RoHS Compliant.
UT-141C-SP 0.141" Silver-plated Copper (SPC) inner conductor and PTFE dielectric material. RoHS compliant.
UT-250C-SP 0.250" Silver-plated Copper (SPC) inner conductor and PTFE dielectric material. RoHS compliant.
Part-Number M17 Description Download Datasheet
UT-034-TP-M17 M17/154-00002 0.034" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric material. RoHS compliant.
UT-047-TP-M17 M17/151-00002 0.047" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric material. RoHS compliant.
UT-085C-H-TP-M17 0.085" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric. RoHS compliant.
UT-085C-TP-M17 0.085" Silver-plated Copper inner conductor and PTFE dielectric. RoHS compliant.
UT-085-H-TP-M17 0.085" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric. RoHS compliant.
UT-085-TP-M17 0.085" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric. RoHS compliant.
UT-141-HA-TP-M17 M17/130-00001 0.141" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric material. RoHS compliant.
UT-141-SA-TP-M17 M17/130-00005 0.141" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric material. RoHS compliant.
UT-141C-TP 0.141" Silver-plated Copper (SPC) inner conductor and PTFE dielectric material. RoHS compliant.
UT-215-TP 0.215" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric material. RoHS compliant.
UT-250A-TP-M17 M17/129-00001 0.250" Non-magnetic Silver-plated Copper (SPC) inner conductor and PTFE dielectric material. RoHS compliant.
Part-Number M17 Description Download Datasheet
UT-085-AL 0.085" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric. RoHS compliant.
UT-141A-AL 0.141" Aluminum alloy center conductor and PTFE dielectric. RoHS compliant.
Part-Number M17 Description Download Datasheet
UT-047-AL-TP 0.047" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric. RoHS compliant.
UT-085-AL-TP-M17 0.085" Aluminum alloy inner conductor and PTFE dielectric. RoHS compliant.
UT-141-SA-AL-TP-M17 M17/130-00009 0.141" Silver-plated Copper Weld (SPCW) inner conductor and PTFE dielectric. RoHS compliant.
UT-250C-AL-TP 0.250" Silver-plated Copper (SPC) inner conductor and PTFE dielectric. RoHS compliant.

Low-Loss 50 Ω Copper & Low-Loss 50 Ω Aluminum

Low-loss semi-rigid cables offer lower attenuation, better phase stability with temperature, and a higher operating temperature compared to traditional solid PTFE semi-rigid cables.

  • Available with copper, tin-plated copper, and tin-plated aluminum outer conductors.

Standard Copper Outer Conductor
Tin-Plated Copper Outer Conductor
Part-Number M17 Description Download Datasheet
UT-031-LL 0.031" Low-loss Silver-plated Copper Weld (SPCW) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-047C-LL 0.047" Low-loss Silver-plated Copper (SPC) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-070-LL 0.070" Low-loss Silver-plated Copper Weld (SPCW) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-085C-LL 0.085" Low-loss Silver-plated Copper (SPC) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-120C-LL 0.120" Low-loss Silver-plated Copper (SPC) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-141C-AL-TP-LL 0.141" Low-loss Silver-plated Copper (SPC) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-250C-LL 0.250" Low-loss Silver-plated Copper (SPC) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
Part-Number M17 Description Download Datasheet
UT-031-TP-LL 0.031" Low-loss Silver-plated Copper Weld (SPCW) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-047C-AL-TP-LL 0.047" Low-loss Silver-plated Copper (SPC) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-070-TP-LL 0.070" Low-loss Silver-plated Copper Weld (SPCW) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-085C-AL-TP-LL 0.085" Low-loss Silver-plated Copper (SPC) inner conductor, and low-density PTFE dielectric. RoHS Compliant.
UT-120-TP-LL 0.120" Low-loss Silver-plated Copper inner conductor, Low-density PTFE dielectric, Tin-plated copper outer conductor, RoHS compliant
UT-250C-TP-LL 0.250" Low-loss Silver-plated Copper (SPC) inner conductor, and low-density PTFE dielectric. RoHS Compliant.

Non-50 Ω Copper

With impedances from 5 to 100 ohms and diameters from 0.020 to 0.250 inch, our specialized impedance semi-rigid cables are the right solution for any impedance matching requirement.

  • Available with copper and tin-plated copper outer conductors.

Standard Copper Outer Conductor
Tin-Plated Copper Outer Conductor
Part-Number M17 Description Download Datasheet
UT-020-13 0.020" 13Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-034-25 0.034" 25Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-034-95 0.034" 95Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-034C-10 0.034" 10Ω Silver-plated Copper (SPC) inner conductor, and PFA dielectric material. RoHS Compliant.
UT-034C-17 0.034" 17Ω Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-038C-25 0.038" 25Ω Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-043C-10 0.043" 10Ω Silver-plated Copper (SPC) inner conductor, and PFA dielectric material. RoHS Compliant.
UT-044-12 0.044" 12Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-047-70 0.047" 70Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-047C-35 0.047" 35Ω Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-062-18 0.062" 18Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-062C-18 0.062" 18Ω Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-070C-10 0.070" 10Ω Silver-plated Copper (SPC) inner conductor, and PFA dielectric material. RoHS Compliant.
UT-070C-25 0.070" 25Ω Silver-plated Copper (SPC) inner conductor, and PFA dielectric material. RoHS Compliant.
UT-075C-10 0.075" 10Ω Silver-plated Copper (SPC) inner conductor, and PFA dielectric material. RoHS Compliant.
UT-085C-15 0.085" 15Ω Silver-plated Copper (SPC) inner conductor, and PFA dielectric material. RoHS Compliant.
UT-090C-25 0.090" 25Ω Silver-plated Copper (SPC) inner conductor, and PFA dielectric material. RoHS Compliant.
UT-090C-35 0.090" 35Ω Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-130-93 0.130" 93Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-141-70 0.141" 70Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-141-75 0.141" 75Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-141-100 0.141" 100Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-141C-15 0.141" 15Ω Silver-plated Copper (SPC) inner conductor, and PFA dielectric material. RoHS Compliant.
UT-141C-25 0.141" 25Ω Silver-plated Copper (SPC) inner conductor, and PFA dielectric material. RoHS Compliant.
UT-141C-35 0.141" 35Ω Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-141C-75 0.141" 75Ω Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-250-75 0.250" 75Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
Part-Number M17 Description Download Datasheet
UT-020-13-TP 0.020" 13Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-034-25-TP 0.034" 25Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-038C-25-TP 0.038" 25Ω Silver-plated Copper (SPC) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-085-75-TP 0.085" 75Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
UT-085-93 0.085" 93Ω Silver-plated Copper Weld (SPCW) inner conductor, and PTFE dielectric material. RoHS Compliant.
